Analyzer

The Analyzer module is designed for data visualization and exploration. It helps to gain insights into the data, identify patterns, and assess relationships between different features, which is essential for building effective models.

Example Usage

from jarvais.analyzer import Analyzer

data = pd.DataFrame({
        "stage": ["I", "I", "II", "III", "IV", "IV", "IV", "IV", "IV", "IV"],
        "treatment": ["surgery", "surgery", "chemo", "chemo", "chemo", "chemo", "hormone", "hormone", "hormone", "hormone"],
        "age": [45, 45, 60, 70, 80, 80, 80, 80, 80, 80],
        "tumor_size": [2.1, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5],
        "death": [True, False, True, False, True, False, True, False, True, False],
    })

analyzer = Analyzer(
    data,
    output_dir="./temp_output/test",
    categorical_columns=["stage", "treatment", "death"],
    target_variable="death",
    task="classification"
)

analyzer.run()

Settings

The Analyzer module can be configured using settings. The settings are stored in a JSON file and can be loaded using the Analyzer.from_settings function. Example settings:

Analyzer(
    AnalyzerSettings(
        output_dir=PosixPath('temp_output/test'),
        categorical_columns=['stage', 'treatment', 'death'],
        continuous_columns=['tumor_size', 'age'],
        date_columns=[],
        task='classification',
        target_variable='death',
        generate_report=True,
        settings_path=PosixPath('temp_output/test/analyzer_settings.json'),
        settings_schema_path=PosixPath('temp_output/test/analyzer_settings.schema.json'),
        missingness=MissingnessModule(
            categorical_strategy={'stage': 'unknown', 'treatment': 'unknown', 'death': 'unknown'},
            continuous_strategy={'tumor_size': 'median', 'age': 'median'},
            enabled=True
        ),
        outlier=OutlierModule(
            categorical_strategy={'stage': 'frequency', 'treatment': 'frequency', 'death': 'frequency'},
            continuous_strategy={'tumor_size': 'none', 'age': 'none'},
            threshold=0.01,
            enabled=True
        ),
        encoding=OneHotEncodingModule(columns=['stage', 'treatment'], target_variable='death', prefix_sep='|', enabled=True),
        visualization=VisualizationModule(plots=['corr', 'pairplot', 'umap', 'frequency_table', 'multiplot'], enabled=True)
    )
)

Example Output

Outlier Detection:
  - Outliers found in Gender: ['Male: 5 out of 1000']
  - Outliers found in Disease Type: ['Lung Cancer: 10 out of 1000']
  - No Outliers found in Treatment
  - Outliers found in Tumor Size: ['12.5: 2 out of 1000']

TableOne(Data Summary)

	Category	Missing	Overall
n			1000
Age, mean (SD)		0	58.2 (12.3)
Tumor Size, mean (SD)		0	4.5 (1.2)
Gender, n (%)	Female		520 (52%)
	Male		480 (48%)
Disease Type, n (%)	Breast Cancer		300 (30%)
	Lung Cancer		150 (15%)
	Prostate Cancer		100 (10%)

Output Files

The Analyzer module generates the following files and directories:

• analysis_report.pdf: A PDF report summarizing the analysis results.
• tableone.csv: CSV file containing summary statistics for the dataset.
• updated_data.csv: CSV file with the cleaned and processed data.
• analyzer_settings.json: Configuration file for the analysis setup.
• analyzer_settings.schema.json: Schema file for the analyzer settings.

Figures

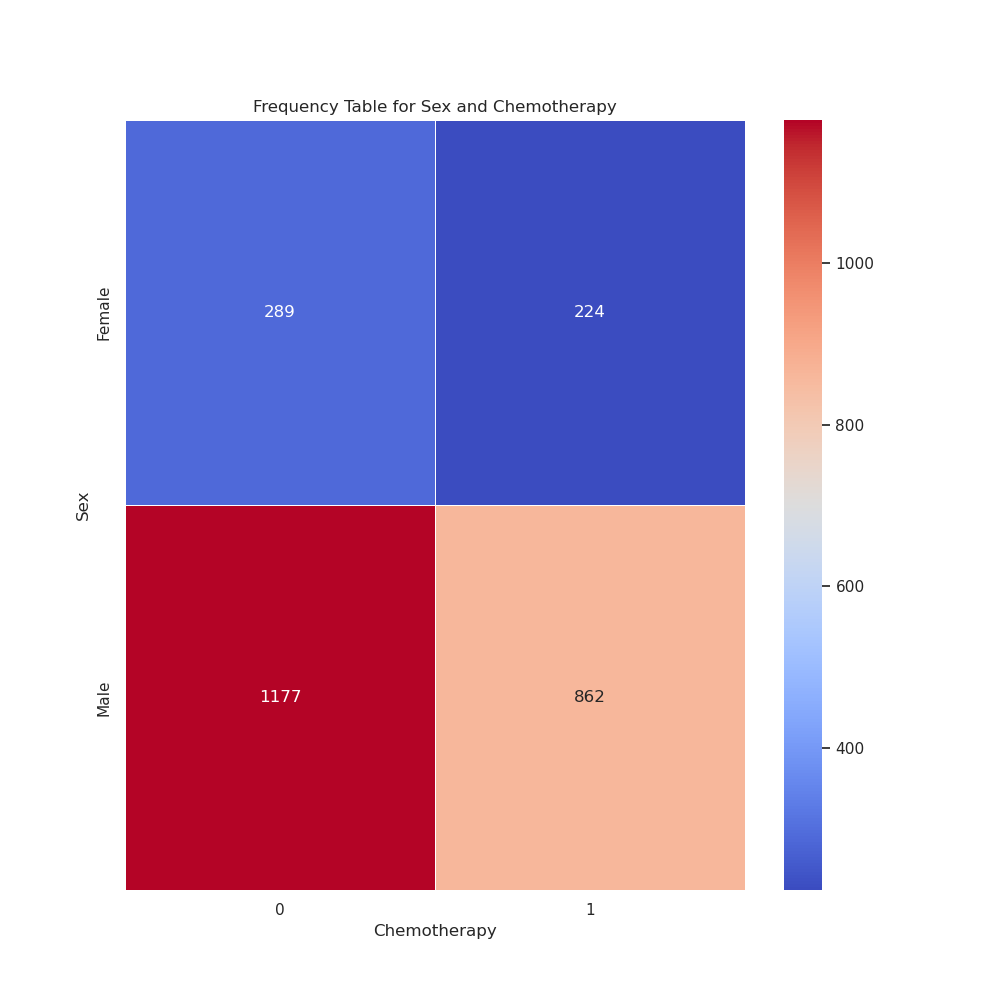

1. Frequency Tables

Visualizations comparing different categorical features.

---

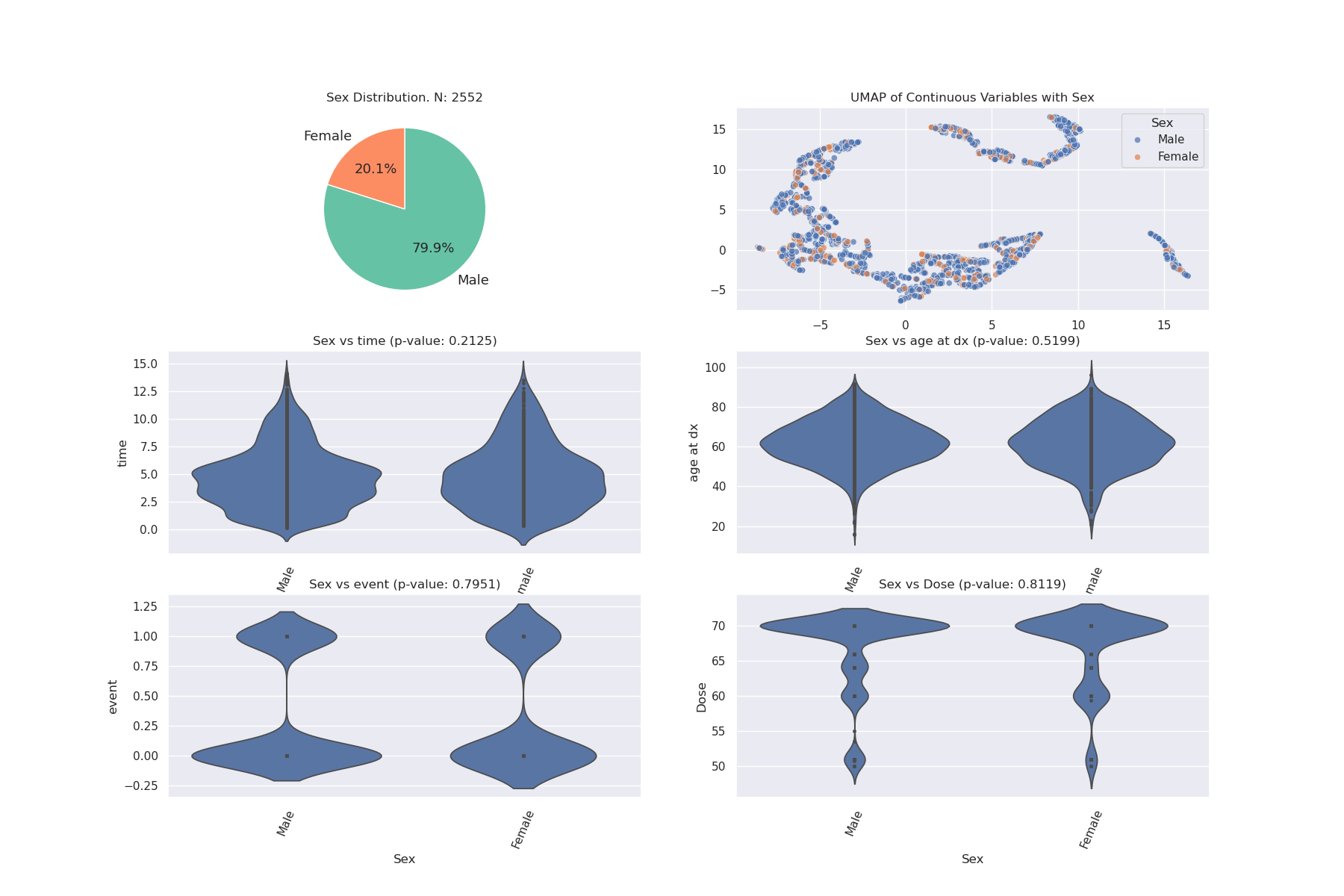

2. Multi-plots

Visualizations showing combinations of features for deeper analysis.

---

Additional Figures

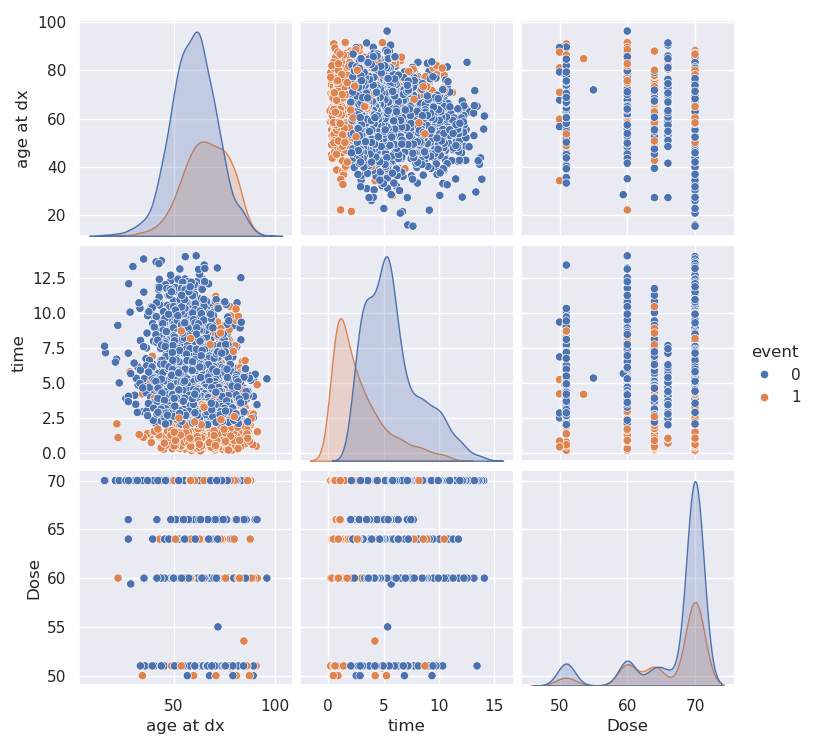

1. Pairplot

Pairwise relationships between continuous variables.

---

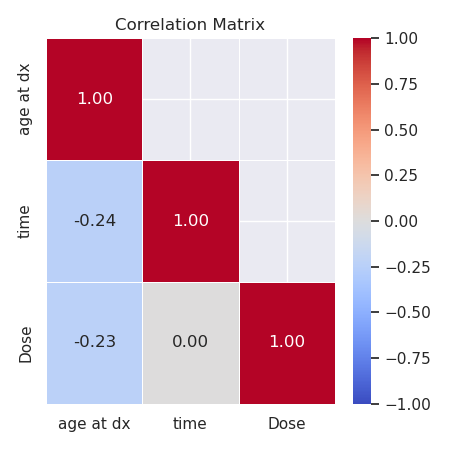

2. Pearson Correlation Matrix

A heatmap visualizing Pearson correlations between variables.

---

3. Spearman Correlation Matrix

A heatmap visualizing Spearman correlations between variables.

---

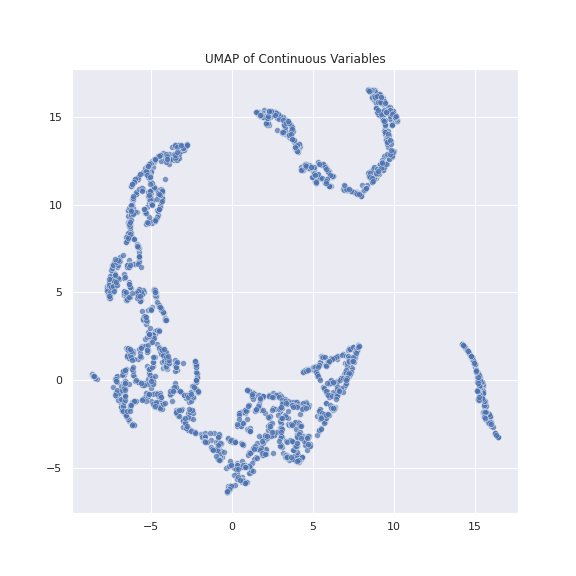

4. UMAP of Continuous Data

UMAP visualization of continuous data.

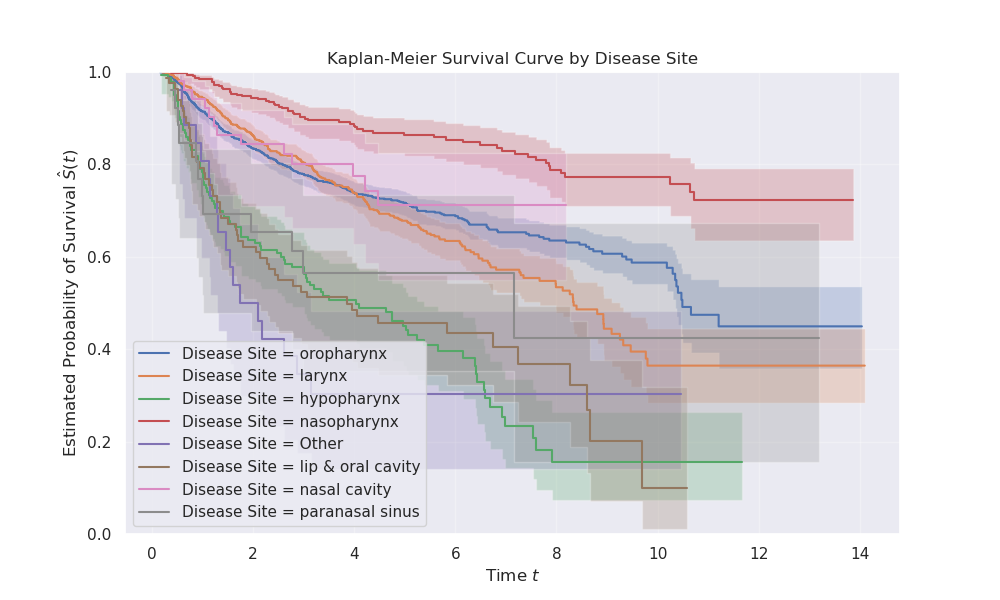

5. Kaplan Meier Curve (Survival)

Kaplan Meier Curves for all categorical variables. An option exclusive to survival data.

Analysis Report
